Oil-immersed transformers

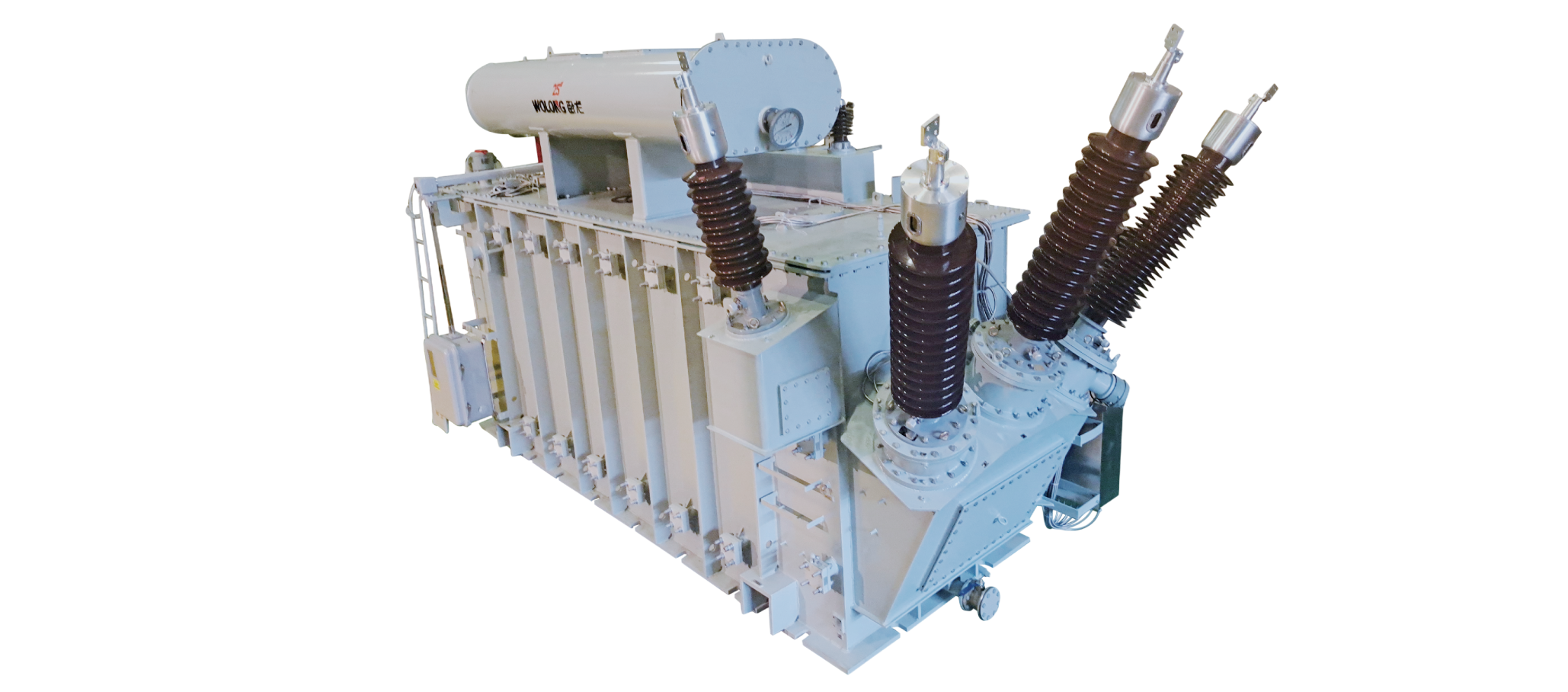

110kV vehicle mobile transformer


The vehicle mobile transformer is mainly used to quickly replace a conventional substation and restore power supply in an emergency. Put into operation during periods of high load to alleviate regional power supply capacity shortages. The mobile transform

Product characteristics

Low loss

reasonably select the working magnetic density of the core
Reduce the working electrical density of each winding
Reduce structural loss
Low partial discharge

control dust control
Rounded electrode
Vacuum oiling
Temporary power supply

with all the functions of an ordinary substation, the transformer can be put into operation by connecting the output and input cables when it arrives at the site
Convenient transportation

the overall structure is compact, and the transport vehicle is integrated into a whole, easy to transport, flexible use


Operating condition

-15℃～+40℃

Ambient air temperature
≤90% (when the temperature is 25℃)

Ambient air monthly mean maximum relative humidity
≤1KM

Altitude

Specification parameter

Capacity	16000-63000kVA
Voltage	110/35kV
Vector group	YNd11
Impedance	10.5%
