Oil-immersed transformers

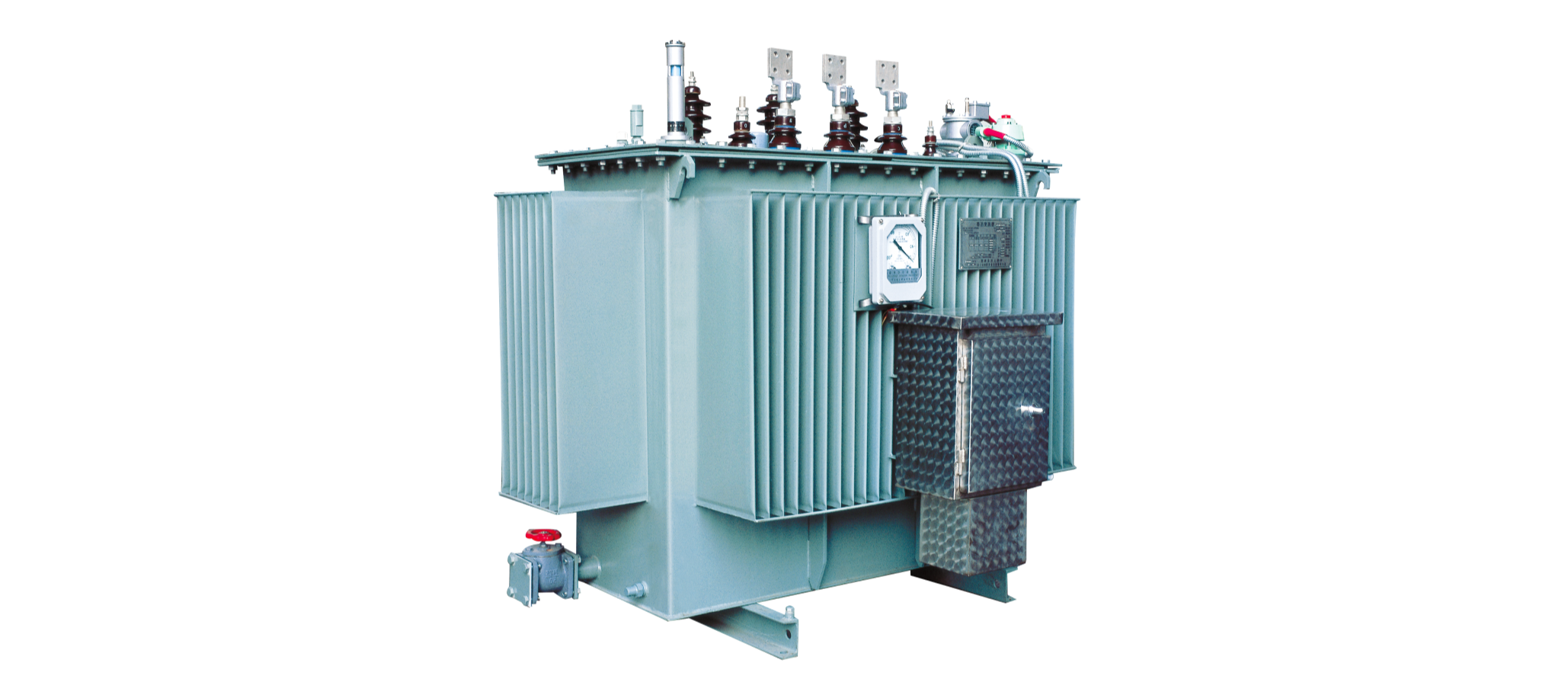

10kV distribution transformer

Distribution transformer is the latest generation of energy-saving transformer, which has been widely used in distribution network. Its high efficiency, strong short-circuit resistance, deep load center, low noise, beautiful and environmental protection o

Product characteristics

Low loss

reasonably select the working magnetic density of the core
Reduce the working electrical density of each winding
Reduce structural loss
High performance

no leakage, strong short-circuit resistance, long service life
Energy conservation and environmental protection

low loss
Easy core coil recovery
High reliability

no leakage, strong short-circuit resistance, long service life

Operating condition

-15℃～+40℃

Ambient air temperature
≤90% (when the temperature is 25℃)

Ambient air monthly mean maximum relative humidity
≤1KM

Altitude

Specification parameter

Capacity	100-6300kVA
Voltage	10/0.4kV
impedance	4-6.5%
Vector group	Dyn11 or Yyn0
