Oil-immersed transformers

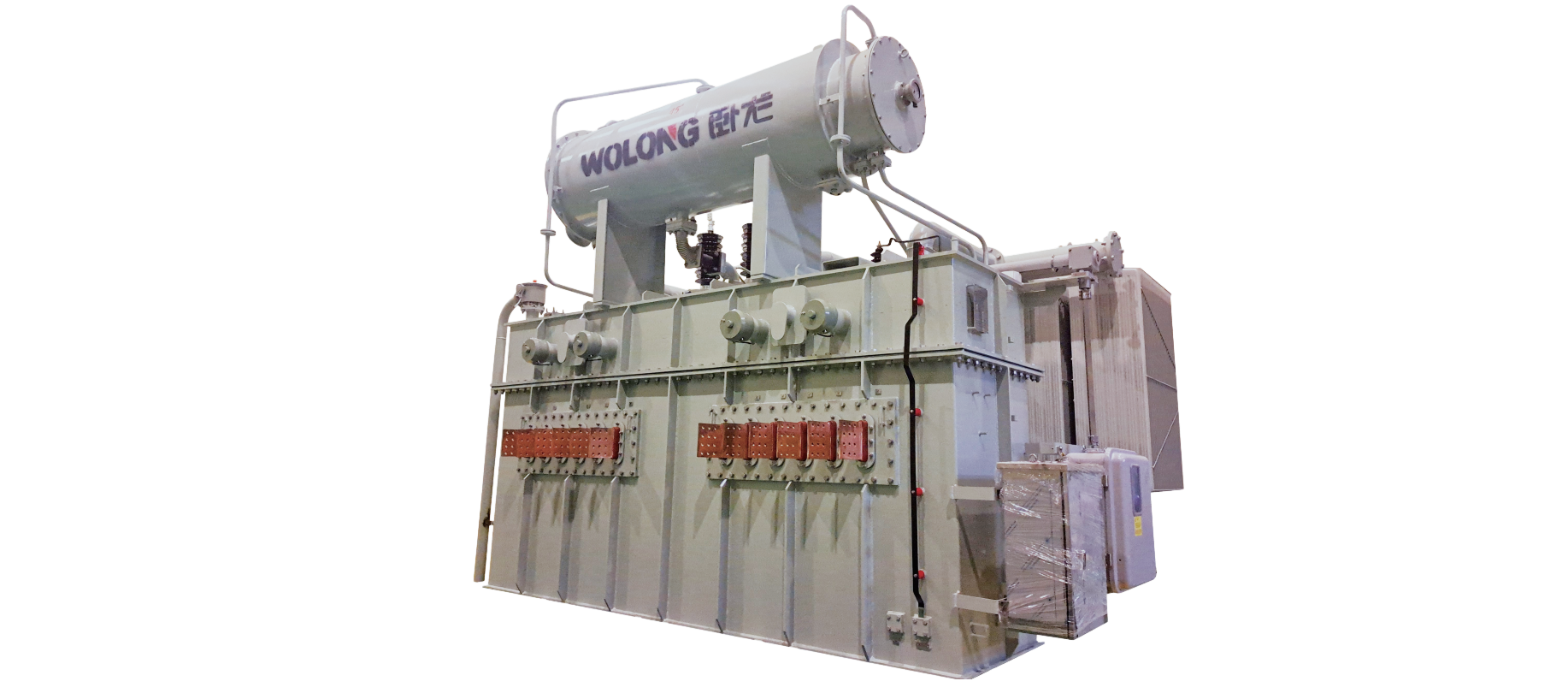

35kV rectifier transformer


Rectifier transformers that provide power for electrochemical industrial rectifier devices are widely used in various fields, in order to improve the DC voltage waveform after rectification and the influence of higher harmonics of the rectifier device on

Product characteristics

Low loss

reasonably select the working magnetic density of the core
Reduce the working electrical density of each winding
Reduce structural loss
Low partial discharge

control dust control
Rounded electrode
Vacuum oiling
Multi-pulse

single unit can be 12 pulse or 24 pulse, multiple units combined into 48~96 pulse
Small volume

the modulator and two commutators share a common oil tank, and the transformer occupies less space, making it easy to maintain.

Operating condition

-15℃～+40℃

Ambient air temperature
≤90% (when the temperature is 25℃)

Ambient air monthly mean maximum relative humidity
≤1KM

Altitude

Specification parameter

capacity	5000-20000kVA
Voltage	35/0.5~1kV
Phase shift Angle	0~30
Impedance	5.5~10%

Typical cases

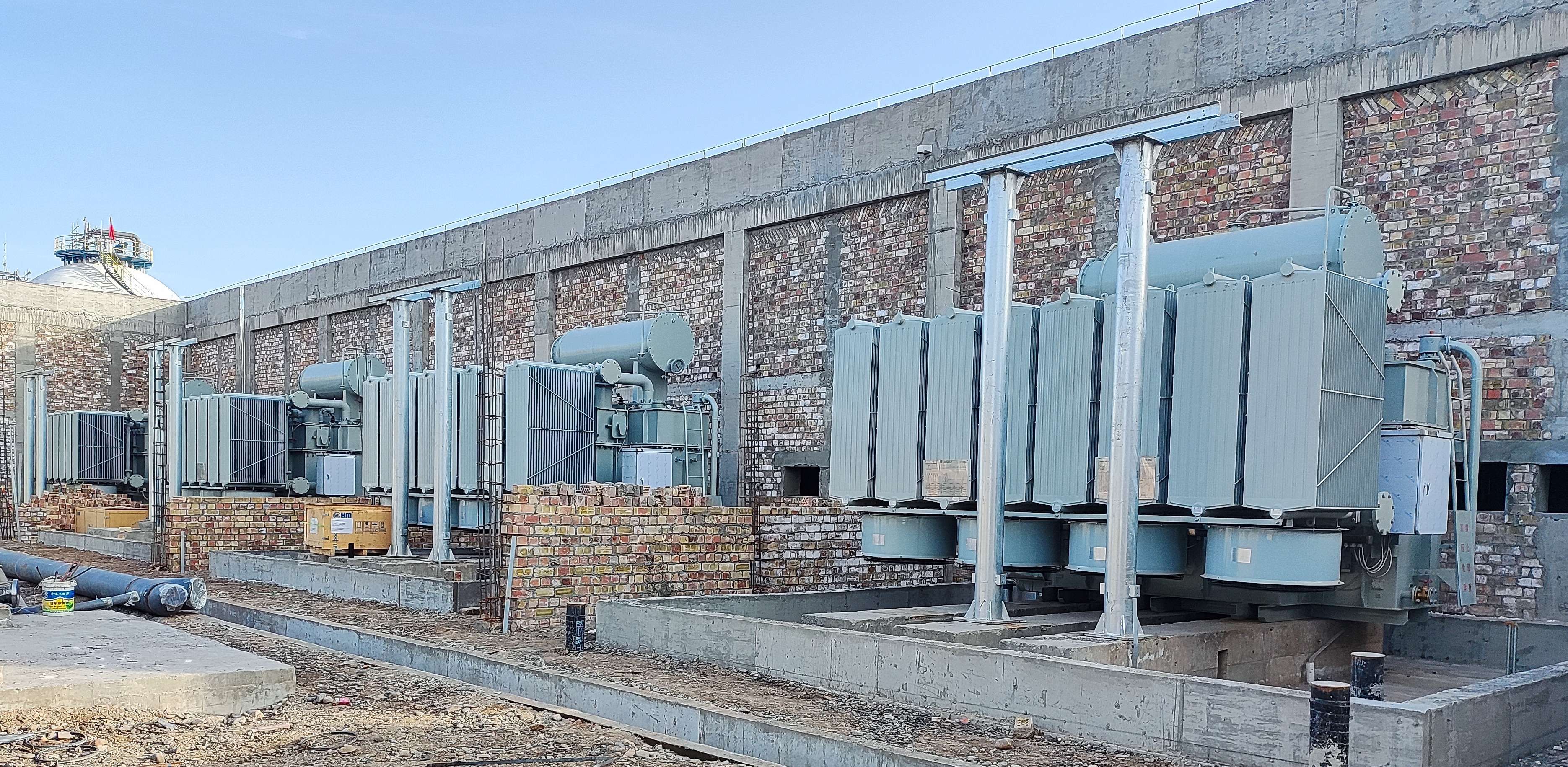

Green Hydrogen Demonstration Project

ZHSFZ-12500/35 kV Transformer
Scope of supply: 26 rectifier transformers
1A rectifier transformer supplies power to 2 electrolytic cells
Ensure constant current operation of the electrolytic cell 15-level on-load voltage regulation

Related products


500kV transformer

500kV UHV transformer adopts advanced UHV manufacturing technology, This type of transformer has the technical characteristics of low loss, low noise, no leaking oil, intelligence, easy installation and maintenance, energy saving and environmental protection, and is mainly used in the national power grid.


230kV vegetable oil transformer

230KV power transformers are widely used in the main power grid of the State grid. Combined with the successful traditional technology at home and abroad and the company's years of experience in transformer production on the basis of careful design, manufacturing continuous improvement of new products. The oil-immersed self-cooled transformer has the characteristics of reliable structure, low loss, low noise and superior performance. Vegetable oil transformers with high environmental protection requirements are mostly suitable for European and American countries.

220kV double split transformer

In order to solve the problem of large-scale super capacity centralized power generation of new energy power stations, double split structure is adopted. Each phase of a double-split transformer consists of a high-voltage winding and two low-voltage winding with the same voltage and capacity. The double split transformer normally transmits electrical energy between the high and low voltage windings. Two low-voltage windings of the same voltage and capacity can be operated separately or in parallel to bear different loads. Mainly used in wind power, photovoltaic and other new energy power generation markets and large state-owned enterprises.
