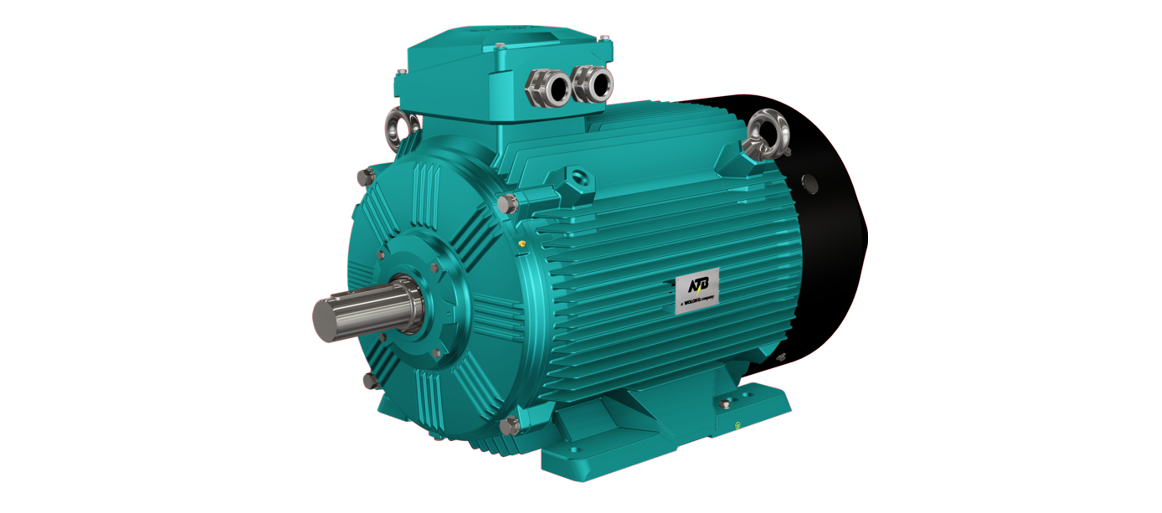

WERM5 Series - PM-Assisted Synchronous Reluctance Motors

The WERM5 series permanent magnet assisted reluctance synchronous motor uses the torque (reluctance torque) generated by the special salient pole structure design of the rotor to drive the motor to rotate. It uses ferrite with excellent high-temperature r

Product Features

Independent R & D

Independently develop a series of products with excellent performance.
Excellent Performance

It has the ability of weak magnetic field speed expansion, can operate at an overspeed, has a wide speed regulation range, and has a significant energy-saving effect.
Product Features

It combines the reliability of asynchronous motors and the high performance of permanent magnet motors.
Widely Applied

It is mainly applied to fluid-type loads such as fans and pumps.

Operating Conditions

-15℃～+40℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Frame size	IEC 80 ~ 160
Rated power	0.37～30 kW
Rated speed	3000, 1500, 1000 rpm
Rated Voltage	380, 400 V or according to customer demand
Duty	S1, S2, S3 etc.
Energy efficiency	IE5 & GB 1
Mounting option	B3 / B5 / B35 / V1 etc.
Insulation	Class F (B，△ T 80 K)、Class H
Enclosure	IP65, IP56, IP65, IP66
Cooling type	IC411, IC416
Standards	IEC 60034-1; IEC 60034-30; GB/T 755; GB 18613, GB 30253-2013
Certifications	CE, CCC
Applications	Used in HVAC systems, air handling units, and industrial exhaust systems. Ideal for centrifugal pumps, water supply systems, and process pumps in manufacturing. Suitable for chilled water pumps, cooling towers, and VAV systems.
