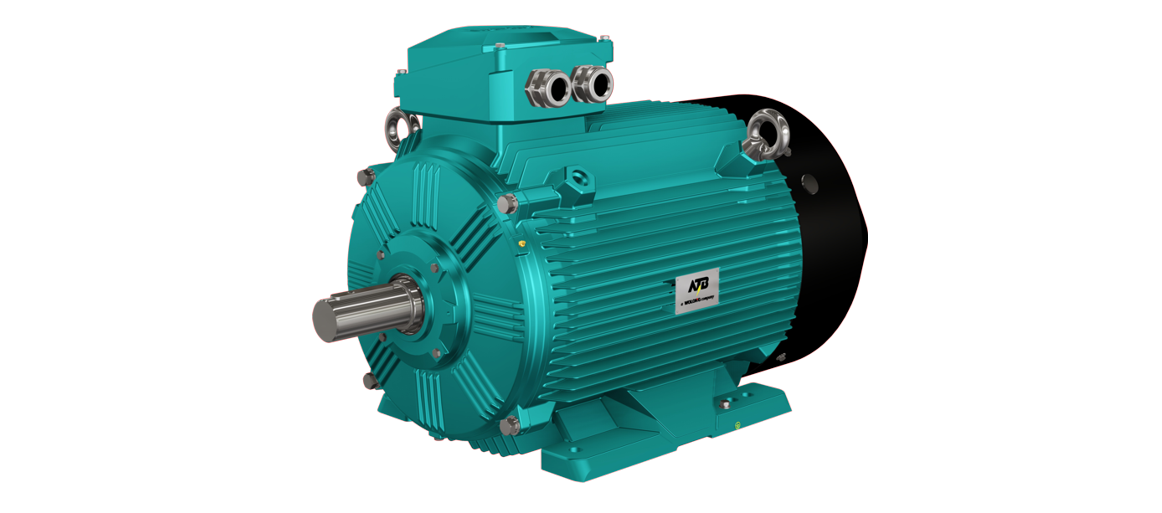

WEPM Series VFD Permanent Magnet Synchronous Motors

WEPM series variable frequency speed-regulating permanent magnet synchronous motor are ultra-efficient permanent magnet motors. They are designed with rare earth permanent magnet materials and their efficiency conforms to IE4/IE5. It has higher efficiency

Product Features

Original design

Series products from original design
Excellent performance

Weak magnetic field speed expansion, has a wide speed regulation range
Product features

High efficiency, low noise, low vibration, safety and reliability, and convenient maintenance
Wide application

Water pumps, fans, air compressors etc. with strict requirements for speed control & precise low-speed control

Operating Conditions

-15℃～+40℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Frame size	Aluminum case: IEC56 ~ 160, Iron case: IEC80 ~ 315
Rated power	0.18 ～315 kW
Rated Voltage	Up to 690 V Standard 380 V; 50 Hz
Rated speed	3000, 1500, 1000 rpm
Energy efficiency	IE4 / IE5
Mounting option	B3, B5, B35, B14, V1
Duty	S1
Insulation	Class F/B, △ T 80 K
Enclosure	IP55
Cooling type	IC411; IC416
Standards	IEC 60034-1; IEC 60034-30-1
Certifications	CE
Applications	Widely used in pumps, fans, air compressors, machine tools, reducers, packaging machinery, mining machinery,construction machinery and other types of transmission machinery industry.
