Integrated motor products

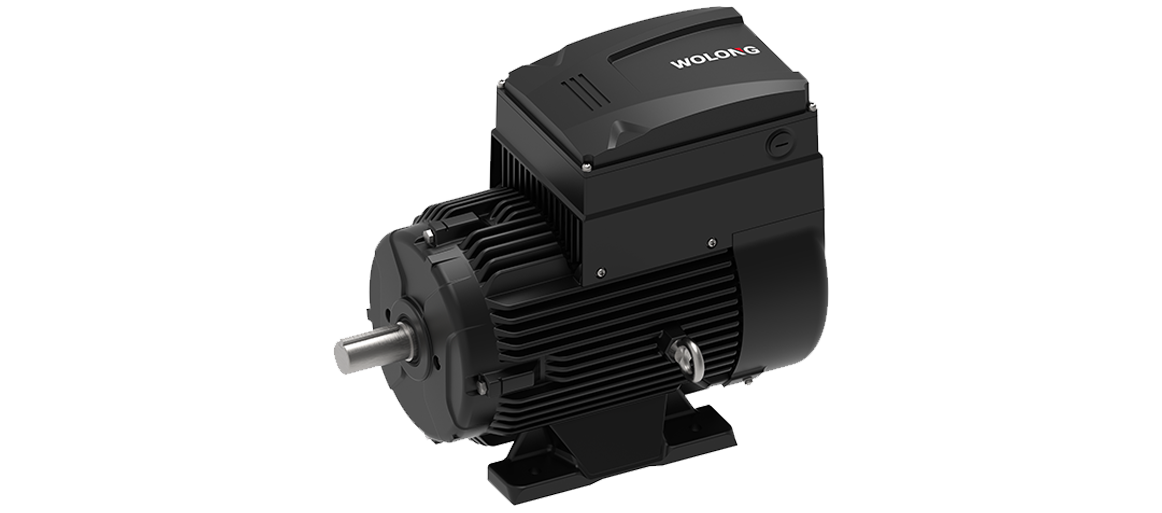

EMR-Bulldozer™ ferrite-assisted
synchronous reluctance integrated motor

It is a high-performance integrated machine, mainly used in factory and large building ventilators.

Product Features

Independent R&D

Independently developed products
Excellent performance

Large starting torque at low speed and the ability to start against the wind
Product features

Integrated design, space-saving, and easy to maintain; high reliability and long service life.
Wide application

Fans and HVAC industry.


Operating Conditions

-15℃～+40℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Rated voltage	Three phase 480V -15%~+10%
Rated frequency	50/60Hz
Motor control mode	Direct flux control
Speed control range	1:100
Overload capacity	115% rated torque 60min 175% 2s
Carrier frequency	2~10KHz, adjusted according to the load
Command source	Digital terminals, communication
Frequency source	Analog quantity, digital setting, communication
Motor type	Permanent magnet auxiliary synchronous reluctance motor
Energy efficiency	Above IE4
