Standard induction motors

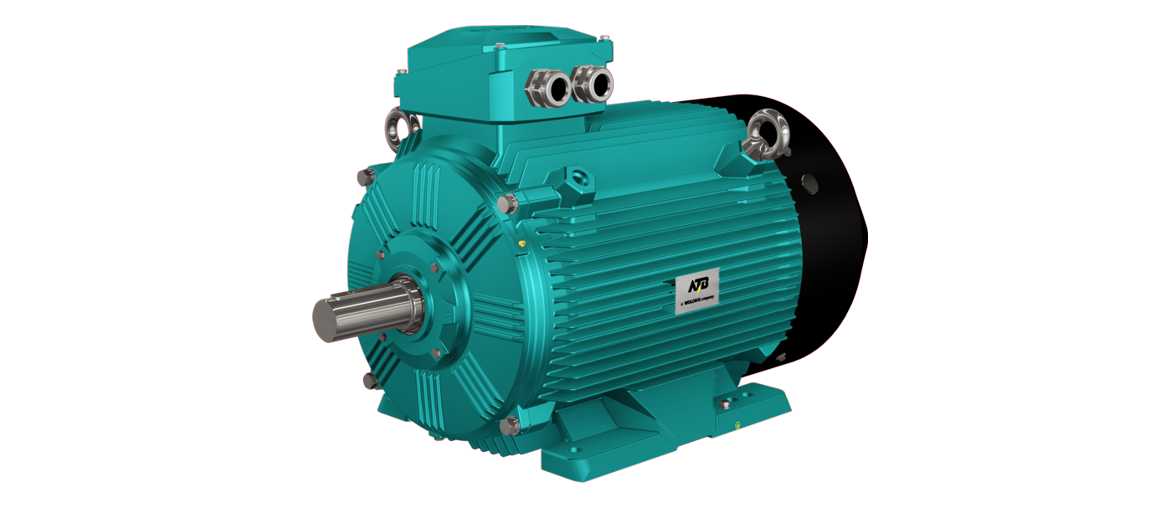

WE series three-phase asynchronous motors

The unique design of the series of motors has an optimized cooling and advanced insulation system, reliability assurance, high efficiency and energy saving, easy in maintenance and is in line with IEC energy efficiency standards.

Please click on this image to open the Product Seletor.

Features

Original design

Series products from original design
High performance

Good appearance, low noise, low vibration, safe and reliable
Product features

Advanced insulation system, and features with high efficiency and good salt spray resistance
Wide application

Water pumps, fans, machine tools, reducers, packaging machinery, mining machinery, paper industry, food machinery, construction machinery etc.

Working conditions

-15℃～+40℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Specifications

Frame size	Aluminum: IEC 63 ~ 160，Cast iron: IEC 80 ~ 355
Rated power	0.18 to 375 kW
Rated voltage	up to 690 V,standard 50 Hz: 400 V
Poles	2, 4, 6, 8 P
Efficiency grade	IE3, IE4, IE5
Work duty	S1
Installation mode	B3, B5, B35, B14, V1
Insulation class	Class F/B，△ T 80 K
Protection level	IP55
Cooling method	IC411
Ambient temperature	40 ℃，1000 m, above sea level
Standards	IEC 60034-30-1; IEC 60072-1
Certifications	CE, CCC
Applications	Compressors, pumps, cranes, lifts, fans and gearboxes, for building /construction, textiles, marine equipment, quarrying, water, sewage and pulp & paper industries.
