Vibration motors

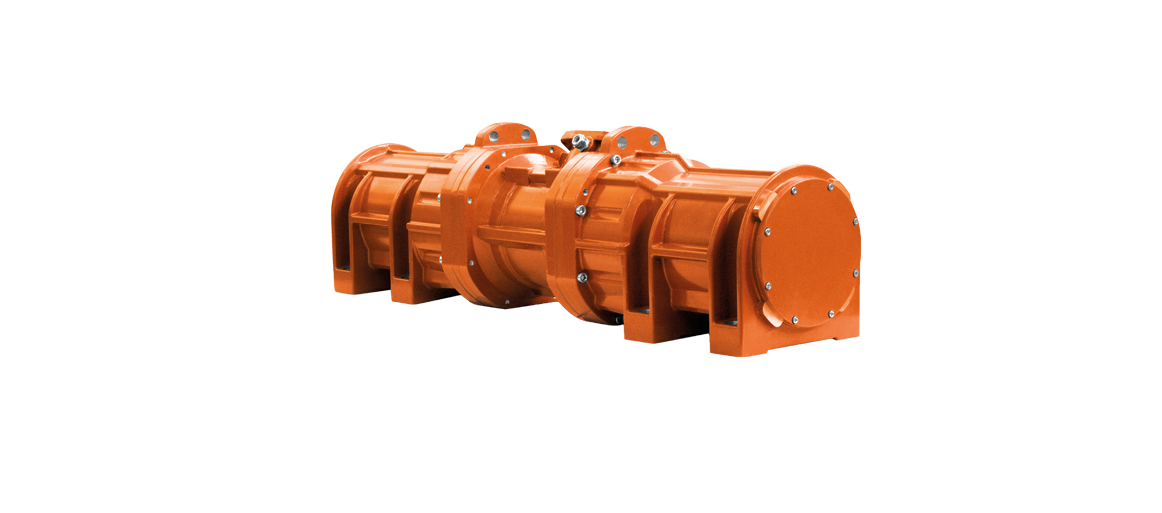

MVE-SV Screen Vibrators


The centrifugal force ranging from 3500 to 8000kg. The centrifugal force can be adjusted for each model,and widely used in quarry, mining, drilling fluid recovery system on the material separation, vibration screening.

Product Features

High quality

High quality raw materials, branded bearings, high strength housing with finite element analysis.
High efficiency

Optimal power and weight ratio, S1 continuous duty, best electrical design.
High reliability

Special grease protection design, PTC thermistor, IP66.
Flexibility

Mass with graded adjustment,and high compatibility with Derrick motors.

Operating Conditions

-20℃～+40℃

Ambient temperature
Monthly average ≤90%

Relative humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Frame material	Cast aluminium case: SIZE 75 SV / SIZE 75 XY / SIZE 80 SV / SIZE 85 SV
Rated power	1.84～2.8 kW
Rated Voltage	220 / 380 V; 380 / 660 V
Rated speed	1500 rpm; 50 Hz
Duty	S1
Insulation grade	Class F
Protection Class	IP66
Cooling method	IC410
Standards	EN 60079-0, EN 60079-31, UL1446 and CSA 22.2 No 0-10
Certifications	cULus, IEC, IECEx, ATEX, EAC, CE
Applications	Widely used in quarries, mining industry, drilling fluid recovery system on the material separation, vibrating screening
