Vibration motors

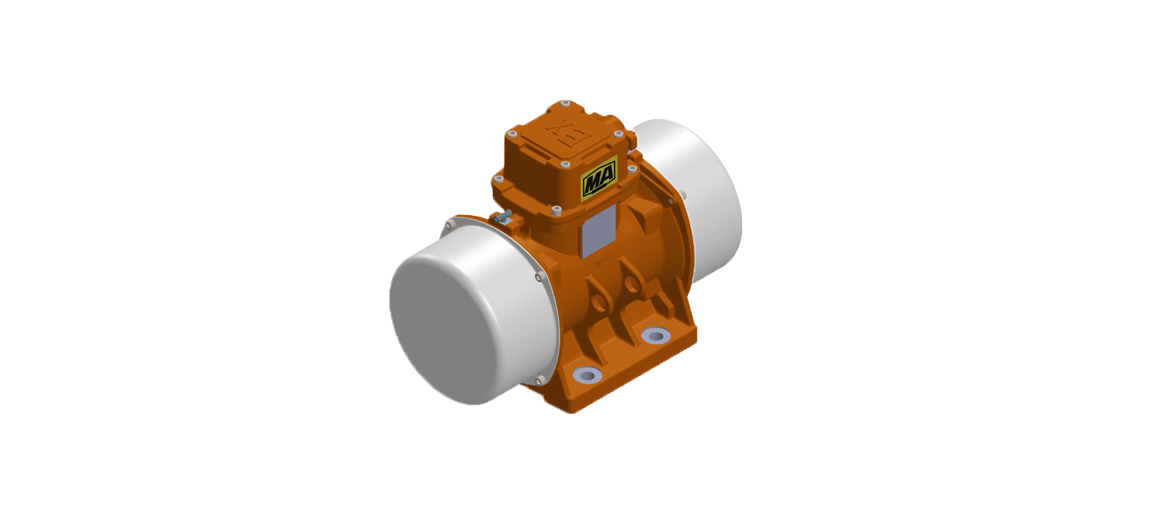

YBZD series vibration source explosion-proof motor


Can provide vibration motor of the centrifugal force ranging from 1500 to 13000kg. This explosion-proof motor is designed for underground coal mine in gas environment (non-mining face).

Product Features

High quality

High quality raw materials, branded bearings, high strength housing with finite element analysis.
High efficiency

Optimal power and weight ratio, S1 continuous duty, best electrical design.
High reliability

Special grease protection design, PTC thermistor, IP65.
Flexibility

The eccentric block is easy to adjust, Multiple outlet directions and Oil injection in any direction.

Operating Conditions

-20℃～+40℃

Ambient temperature
Monthly average ≤90%

Relative humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Frame material	Iron enclosure: SIZE 75 D-SIZE 90 D
Rated power	1.0～7.5 kW
Rated Voltage	380 / 660 V
Rated speed	750 ~ 3000 rpm; 50 Hz
Duty	S1
Insulation grade	Class F
Protection Class	IP66
Cooling method	IC410
Standards	AQ 1043-2007
Certifications	MA
Applications	Vibrating machinery for coal mine and underground gas gas esnvironments
