Motors for specific applications

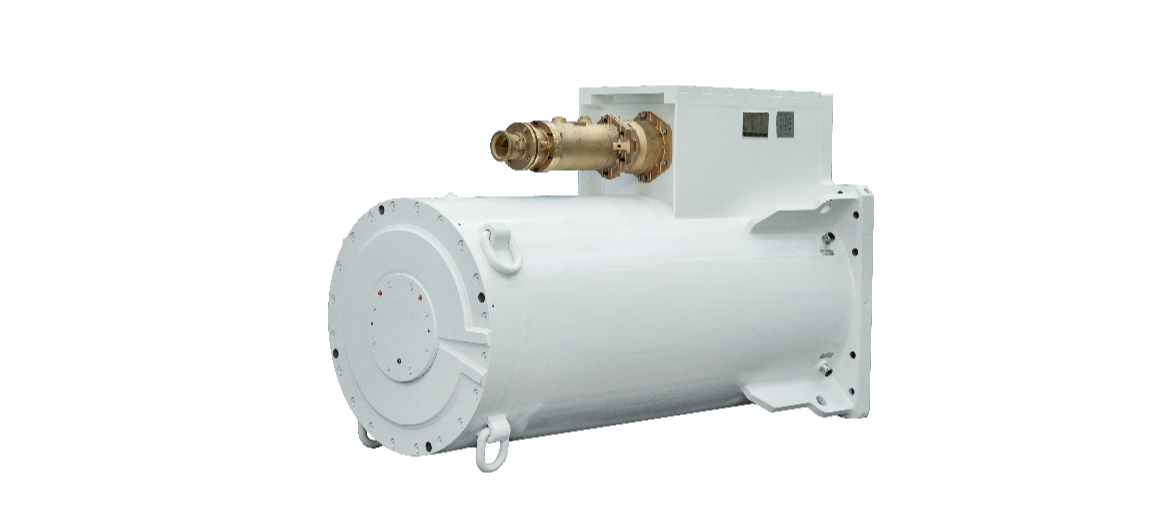

Conveyor motor
Featuring lower shaft
height, higher power output, higher efficiency, lower noise, safe and
reliable operation and convenient maintenance. This series of motors are
suitable for various industries, driving underground scraper conveyors,
scraper loaders, crushers, belt conveyors, pumps and other mechanical
equipment.
Product Features
-
Excellent performanceLow vibration: ≤1.2mm/s;
Low noise: ≤Lp85dB(A);
Torque: ≥2.5 times -
High reliabilityReliable insulation and long lifespan;
Robust bearing structure -
Advanced cooling structureRational cooling channel design;
High-efficiency heat exchange;
High power density -
High protection gradeUnique structural and sealing design
Working conditions
-
0℃ ~+40℃
Ambient air temperature -
≤95% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~3000m.a.s.l.(Customized)
Altitude
Specifications
| Cooling method | IC37W |
| Power range | 160-1600kW |
| Speed range | 1500rpm |
| Frequency | Fixed 50Hz/Variable |
| Voltage range | 660-11000V |
| Protection grade | IP56, IP67 |
| Explosion proof type | Ex db I Mb |
| Rotor material | Copper bar |
| Mounting type | IMB3, IMB35, IMB10 |
| Bearing | Rolling bearing |
| Standards | GB, IEC, EN |
| Certifications | IEC Ex, ATEX, CCC, MA |
