Motors for specific applications

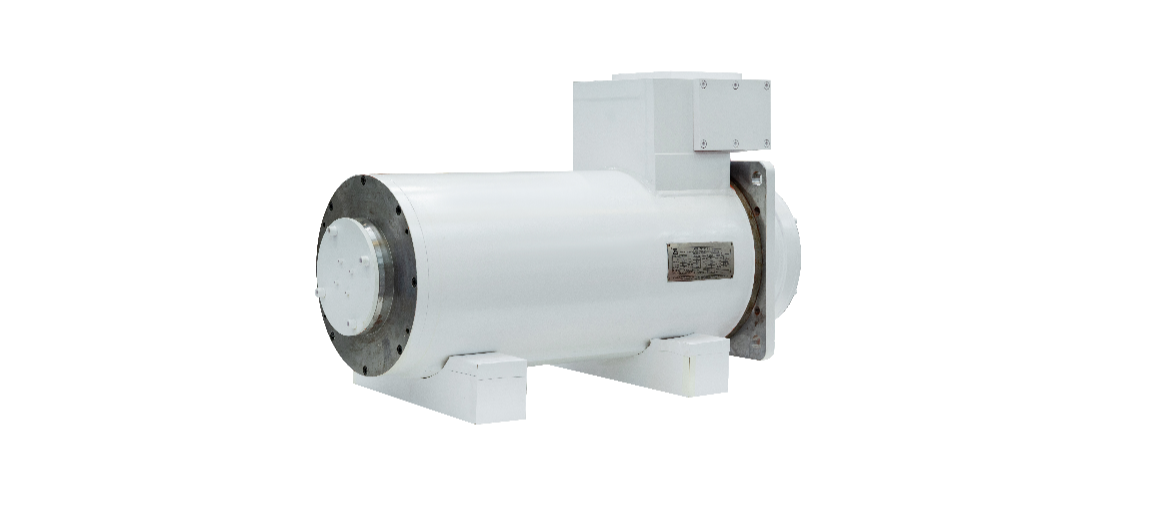

Tunneling motor
Providing tailor-made
product design and solutions to complex technical problems for customers
in different industries, featured with compact structure and space
saving. It is suitable for driving underground coal mine boring machine,
all-in-one machine for digging and anchoring, bolt loader, continuous
mining machine or other similar mechanical equipment.
Product Features
-
Superior torque characteristicsCustomized torque capability;
Ensuring optimized performance -
High product consistencySpecialized design ensures torque uniformity, ideal for coaxial multi-drive load systems
-
Advanced cooling structureRational cooling channel design;
High-efficiency heat exchange;
High power density. -
High protection gradeUnique structural and sealing design
Working conditions
-
0℃ ~+40℃
Ambient air temperature -
≤95% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~3000m.a.s.l.(Customized)
Altitude
Specifications
| Cooling method | IC37W |
| Power range | 36-540kW |
| Speed range | 750-1500rpm |
| Frequency | 50Hz |
| Voltage range | 380-3300V |
| Protection grade | IP56, IP67 |
| Explosion proof type | Ex db I Mb |
| Rotor material | Copper bar |
| Mounting type | B10 |
| Bearing | Rolling bearing |
| Standards | GB, IEC, EN |
| Certifications | IEC Ex, ATEX, CCC, MA |
