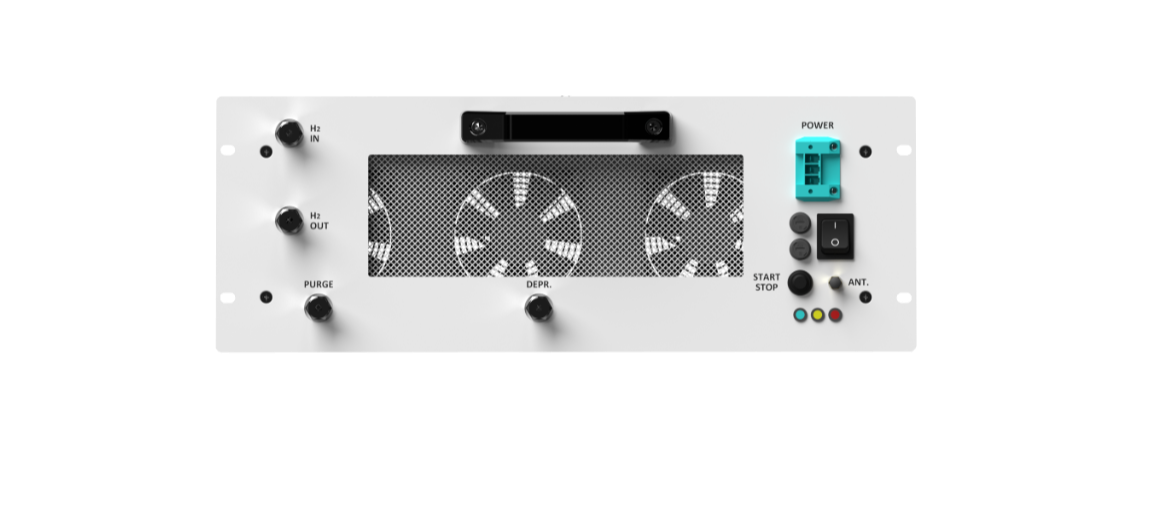

Dryer DRY2.1


The dryer is maintenance free and can be installed in a standard 19 inch cabinet.

Operating Condition

35 bar

Output pressure
5 - 45°C

Ambient operative temperature range
Maintenance-free

Maintenance

Specifications

Hydrogen drying rate	Up to 2.5 Nm³/hr
Ambient operative humidity range	Up to 95% Rh, non-condensing
Hydrogen output purity	> 99.999% in molar fraction
Average dewpoint and impurities	< -70 °C (-94 °F), compliant with ISO14687
Operative power consumption	(H₂O < 5 ppm, O₂ < 5 ppm)
Stand-by power consumption	10W
Power supply	AC 200-240 V, 50/60 Hz
Space inside cabinet	4U
Weight	23 kg

Related products

Flex 120-白底.png

Multi core water electrolysis hydrogen production device-AEM Flex 120

Our AEM Flex 120 enables you to streamline green hydrogen start-up in pilots ranging from industrial waste heat to hydrogenation.


Multi core water electrolysis hydrogen production device-AEM Nexus

No hydrogen oxygen separation device is required, only a dryer is needed to achieve 99.999% purity. If you need 99.9999% high-purity hydrogen, you only need to add one dryer.

AEM Electrolyser EL4.1

Enapter's patented anion exchange membrane (AEM) electrolyzer is a standardized, stackable and flexible on-site hydrogen production system.
