AEM Electrolyser

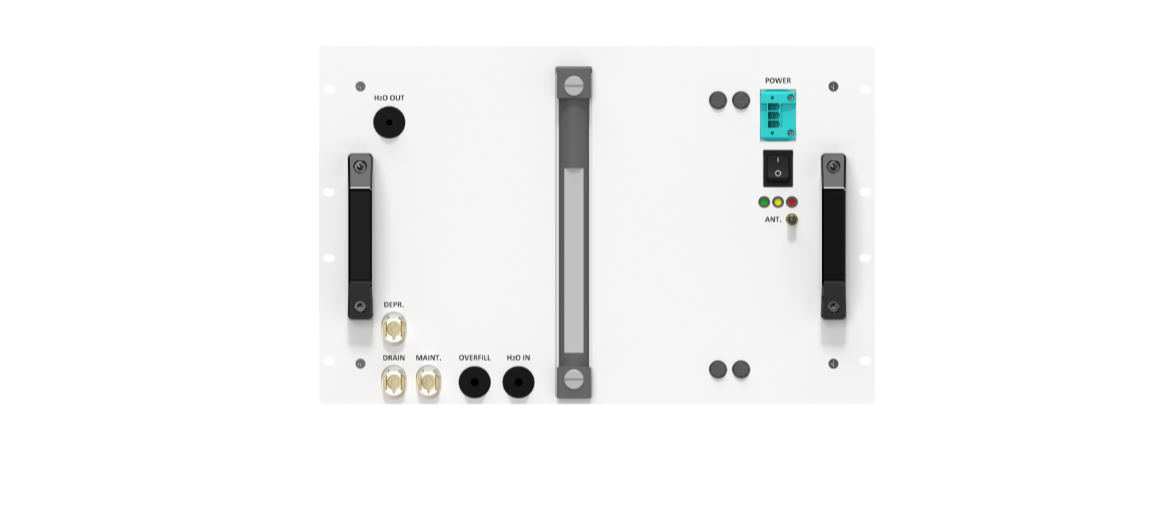

Water Tank Module WTM 2.1


The tank contains a conductivity sensorand a pump system to supply up to 11 AEM Electrolysers with clean water.

Operating Condition

5°C-45°C

Ambient operative temperature range
20-95%Rh

Ambient operative humidity range
<5μS/cm(at25°C)

Maximum water input conductivity

Specifications

Capacity	38.5L
Output pressure	Up to 2.75 barg
Operative power consumption	35W
Stand-by power consumption	3W
Power supply	AC110-240V,50/60Hz
Water input pressure range	0-6barg
Weight (without water) Weight (with water)	23kg 62kg
Dimensions (W × D × H)	W:482mm×D:643mm×H:310mm
Space inside cabinet	7U
