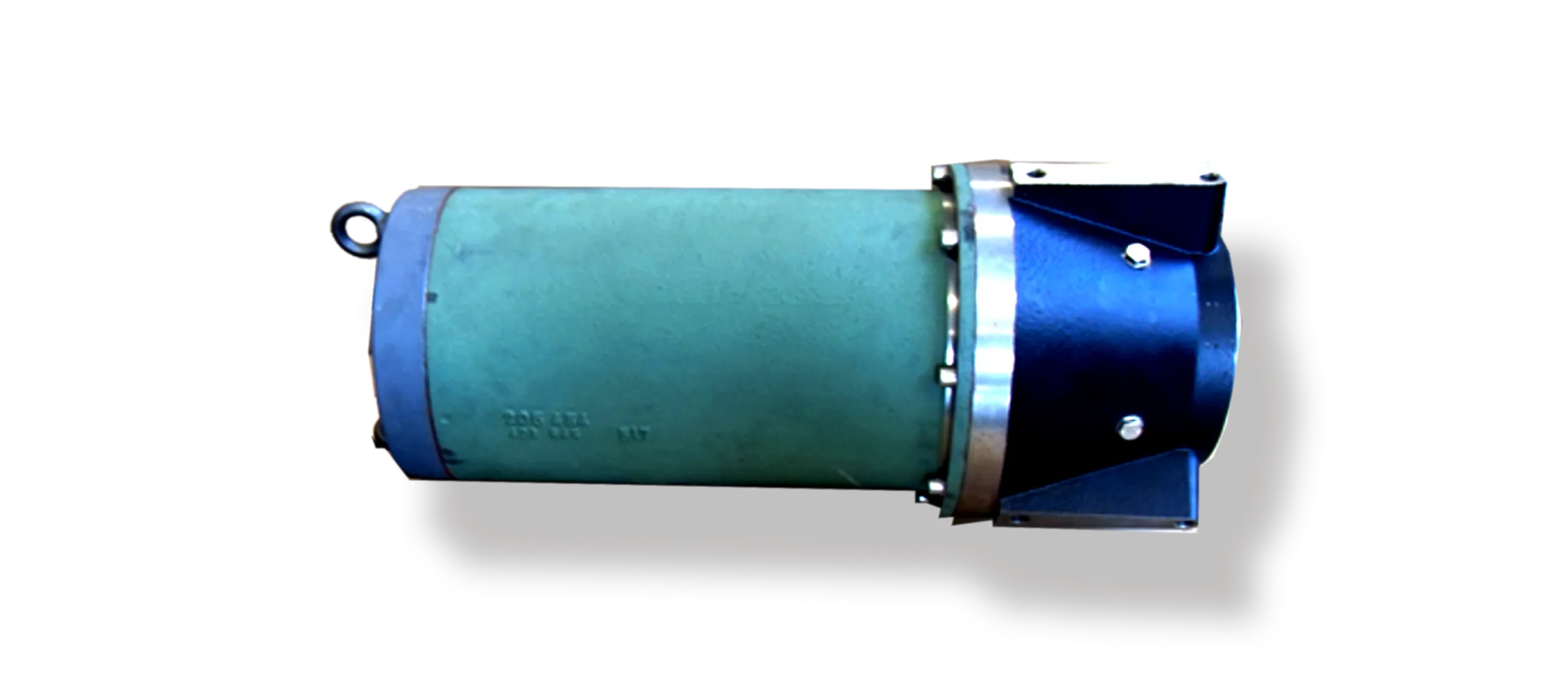

Submersible pump

TP Design

TP series are submersible pumps for the biogas industry with protection class IP 68.

Features

Customised motor

New submersible pumps can be developed upon customer request.
High performance

High performance spectrum possible
Product features

Highest level of protection in highest quality.
Wide Applications

Bio Gas Industrie

Working conditions

-15 ℃～+40 ℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000 m a.s.l.

Altitude

Specifications

Series	TP Series Motors
Frame size	IEC 100 ~ 160
Rated power	5.5 to 25 kW
Rated Voltage	up to 690 V standard 400 V; 50 Hz; 60Hz
Poles	2, 4, 6, 8, 10
Efficiency grade	IE3
Duty	S1
Installation mode	B5, V1, V3
Insulation class	Class F /B, △ T 80K,
Protection level	IP68
Cooling type	IC411
Ambient temperature	40 ℃, 1000 meters above sea level
Standards	IEC 60034-30-1; IEC 60072-1
Certifications	CE, UKCA, ATEX is possible
Applications	Bio Gas Industrie
