Linear motor drives

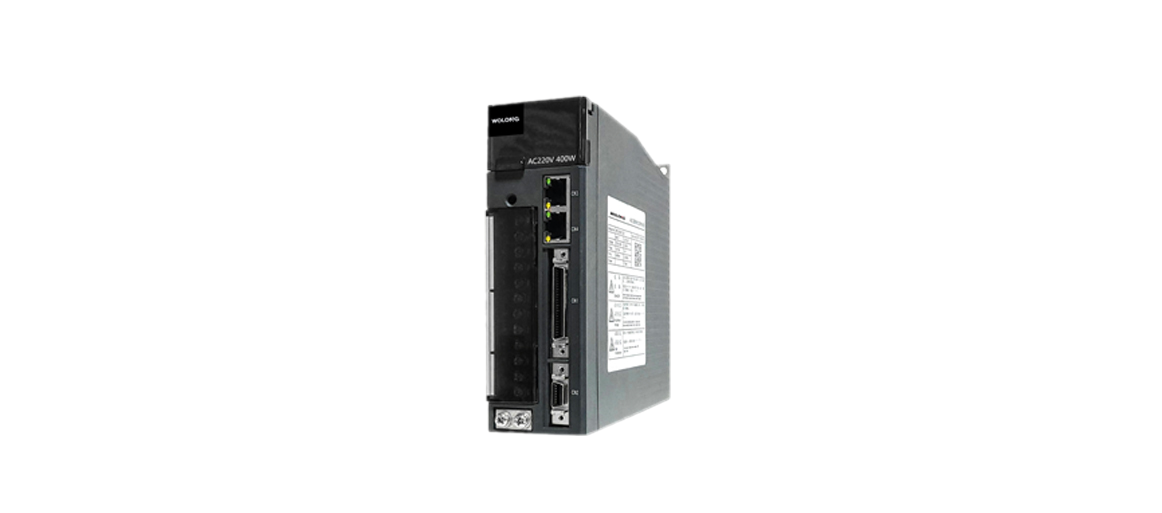

W series linear motor driver

W series linear motor driver control performance is excellent, advanced functions are complete, under various working conditions with full precision, high response characteristics, convenient debugging application, reliable operation, can be adapted to sh

Product Features

Convenient debugging

With automatic gain adjustment, gain switching, torque compensation, vibration suppression, advance feed control and other rich functions, debugging is simple and fast
Efficient

powerful PC software
A variety of control methods

With position control, speed control, torque control, full closed loop control, EtherCAT and other control methods
Simple

W Series linear motor drivers are compact, thin and easy to install

Product Parameters

voltage	Single-phase/three-phase AC 220V
Power range	50W-3000W
Control mode	Position, speed, torque, EtherCAT
External grating ruler	ABZ phase 4Mpps
Pulse signal	Up to 4Mpps
Analog signal	3 channels, -10V to +10V
Digital IO	6 inputs, 3 outputs
Communication	RS232/485
Regenerative resistance	More than 750W built-in
Dynamic brake	built-in
Vibration suppression	Four notch filters and four terminal vibration suppression
Automatic gain	Automatic inertia identification
