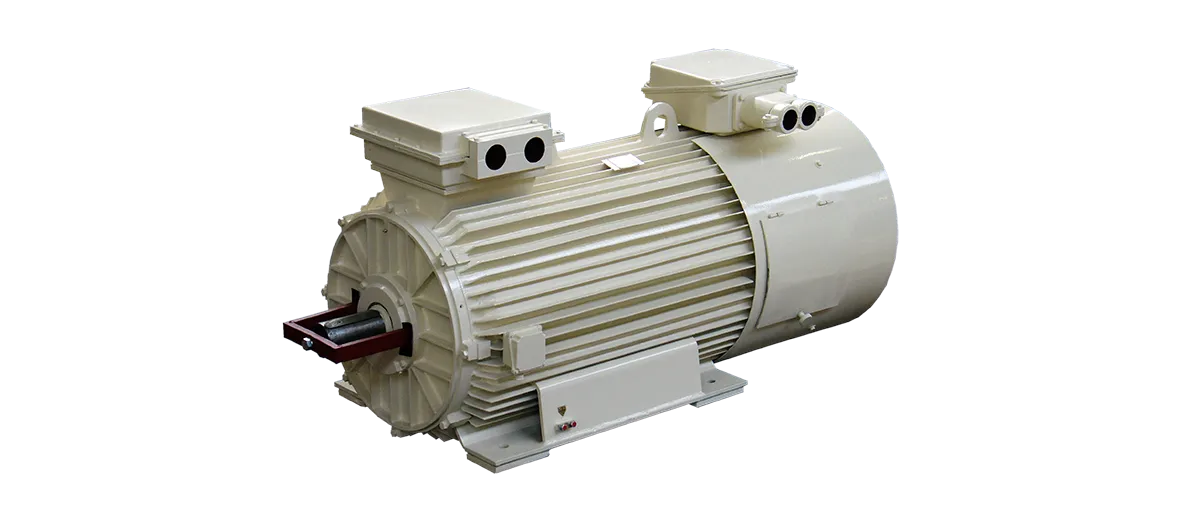

Three-phase induction motors

WOUND-ROTOR MOTORS for cranes and general purpose

The unique design of the series of motors has an optimized cooling and advanced insulation system, reliability assurance, high efficiency and energy saving, easy in maintenance and is in line with IEC energy efficiency standards.

Features

Original design

Series products from original design
High performance

Good appearance, low noise, low vibration, safe and reliable
Product features

Advanced insulation system, and features with high efficiency and good salt spray resistance
Wide application

Water pumps, fans, machine tools, reducers, packaging machinery, mining machinery, paper industry, food machinery, construction machinery etc.

Working conditions

-15 ℃～+40 ℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000 m a.s.l.

Altitude

Specifications

Standards:	IEC 60034-1
Rotor type:	wound-rotor (slip-ring)
Output:	45 – 1800 kW
Voltage / frequency:	230 – 690 V / 50 Hz, 60 Hz
Frame Size:	280 – 400
Number of poles:	2 – 10
Insulation class:	F
Mechanical protection:	IP 55
Cooling:	IC 411
Mounting arr.:	IM B3, V1
Fixing dimensions:	IEC 60072, SEB 841, DIN 42681 // IEC 60072
Designation:	(2)ZPD // 2.ZPDI // 2.ZPDI
