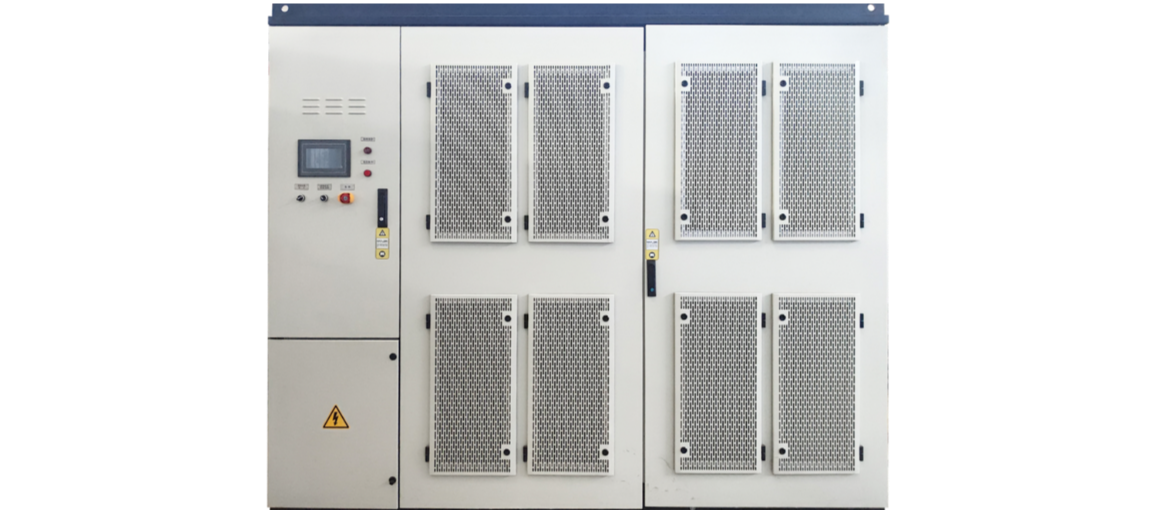

5000 Series Integrated Type High Voltage VFD

The product is further optimized and upgraded on the basis of compact structure of the original 5000 series, and the integrated design of the complete machine achieves higher power density, smaller floor space, higher reliability, and easier arrangement a

Product Features

Optimized structure

Compact structure, integrated desig, high power density
Convenient arrangement and maintenance

Smaller floor space, easier arrangement and maintenance
Film capacitors

Select dry type metalised film capacitors
High performance

High efficiency, high power factor, no special requirements for the motor

Operating Conditions

0℃～+40℃

Ambient air temperature
≤90% non-condensing (at temperature 25℃)

Ambient air monthly average maximum relative humidity
≤1KM

Altitude

Product Parameters

Mode	RMVC/WD(5000 Series)
Capacity Range	0kVA~3500kVA【 10kVas example】
Rated Voltage	6/10kV
Weight	2700kg/3100kg/4300kg/5300kg
Dimension: (10kV as example)	250-500kVA：180015002393（WDH mm） 535-1250KVA：210015002431（WDH mm） 1400-1750kVA：240015002631（WDH mm） 2000-2500kVA：270017002665（WDH mm） 2750-3000kVA：270017002665（WDH mm） 3125-3500kVA：3200×1800×2665（WDH mm）
IGBT Voltage	1700V
Transformer Type	Dry type phase shifting transformer
