Three-phase synchronous motors

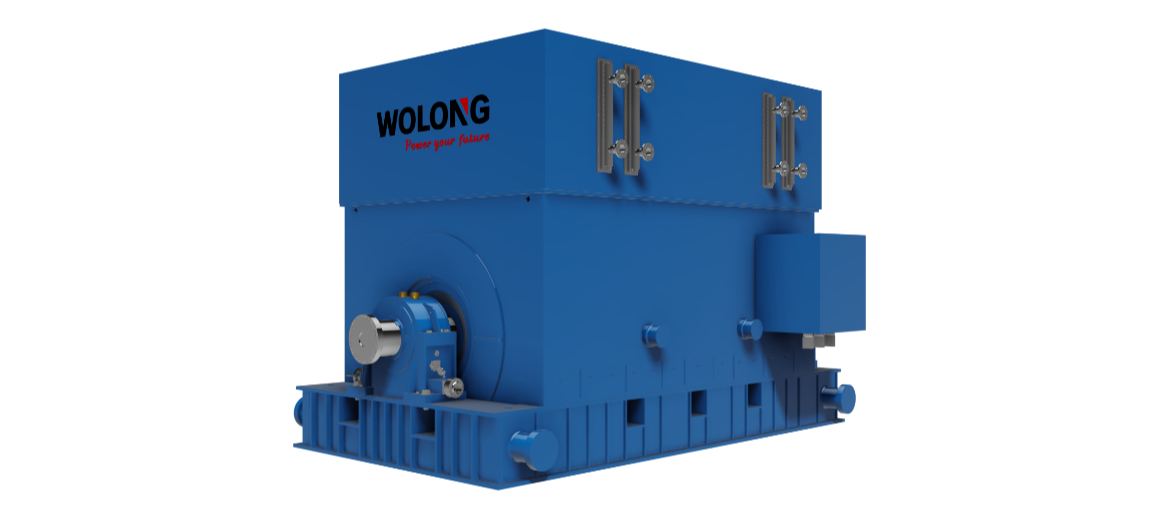

Synchronous motors (105MW)
Capable of dual-mode
operation (motor and generator), high efficiency and low vibration. It
adopts special design and has excellent performance, and is suitable for
large compressor and expander loads, and is applied to new energy
industries such as air energy storage, energy recycling etc.
Product Features
-
High reliabilityPositive pressure gas-sealed;
Advanced VPI;
Meet frequent start-up requirement -
Excellent performanceLow vibration, Low noise;
High efficiency;
Full load output under dual-mode operation -
Easy maintenanceInsertion-type brush holder;
Large terminal box for easy wiring;
Special inspection window; -
ApplicationsAir energy storage, energy recycling etc.
Working conditions
-
-20℃ ~+40℃ (Standard)
-60℃ ~+60℃ (Customized)
Ambient air temperature -
≤90% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude
Specifications
| Cooling method | IC81W |
| Power range | 30000-150000kW(40200-201000Hp) |
| Speed range | 1500~3600rpm |
| Voltage range | 6000-15750V |
| Protection grade | IP21 to IP56 |
| Rotor material | Alloy forged steel |
| Mounting type | IMB3 |
| Bearing | Endshield or seated bearing |
| Standards | GB, IEC |
| Applications | Large compressors and expanders |
