Three-phase synchronous motors

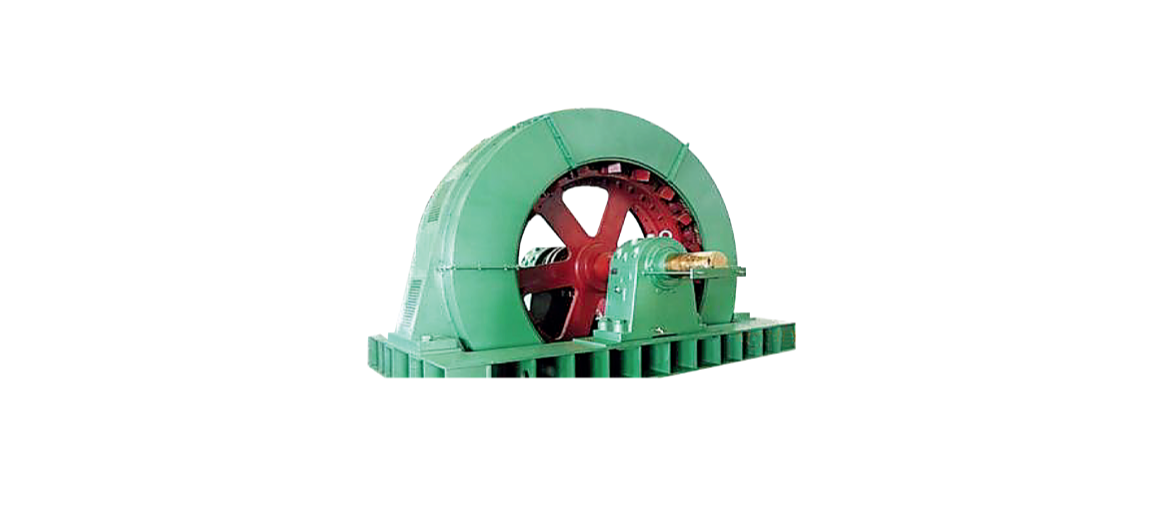

Low speed synchronous motors
for grinding mills
Adopting mature design
technology and manufacturing technology, it is specially designed for
special loads. The electromagnetic design of the motor is reasonable,
the structure is safe and reliable, and the electrical and mechanical
properties can fully meet the special requirements of the mill load. It
is an ideal drive product for large-scale Cement & Mining mills.
Product Features
-
High reliabilityLarge starting torque;
Reliable insulation;
Perfect monitoring measures
-
Excellent performanceLow vibration: ≤ 2.3mm/s.
Low noise: ≤Lp85dB(A).
High starting torque multiple design
-
Easy maintenanceConstant pressure brush holder,
easy to repair;
Customized replacement
-
Specialized for Mine millsSpecial for large-scale Cement & Mining mills
Working conditions
-
-20℃ ~+40℃ (Standard)
-60℃ ~+60℃ (Customized)
Ambient air temperature -
≤90% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude
Specifications
| Cooling method | IC01, IC86W, IC81W, IC666 |
| Power range | 600-20000kW(800-27000Hp) |
| Speed range | 125-428rpm |
| Voltage range | 6000-13800V |
| Protection grade | IP21 to IP54 |
| Rotor material | 45# forged steel |
| Mounting type | IMB3 |
| Bearing | Seated slide bearing |
| Standards | GB, IEC, NEMA |
| Applications | Grinding mills |
