Motors for washing machine

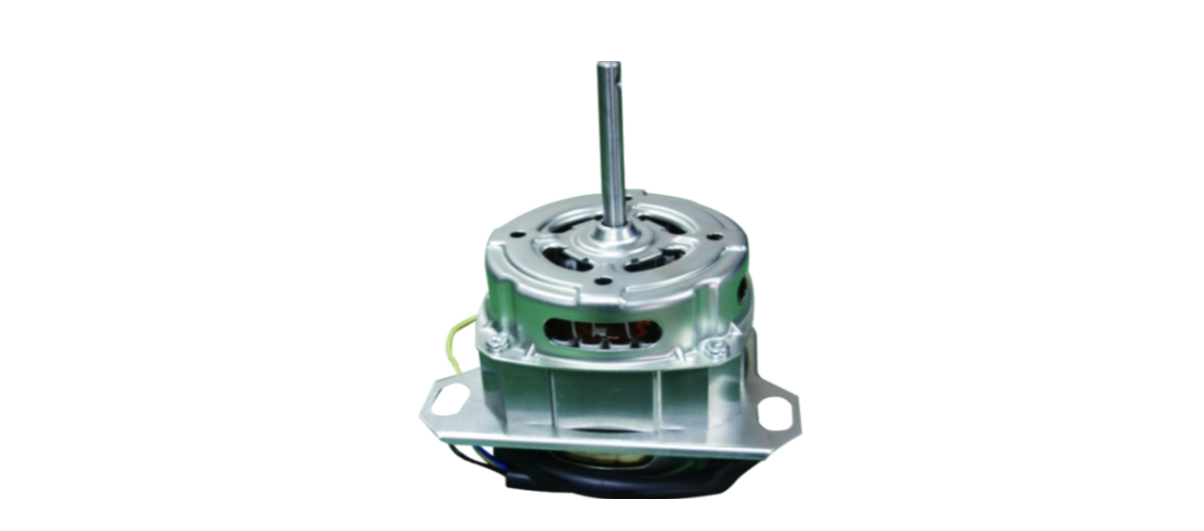

Impeller motor for AC series washing machine
Adopts cast aluminum end
cover structure, easy to install, can be designed as direct drive or
belt drive, and has built-in recoverable thermal protector, which is
safe and reliable; low noise, mature technology, large torque and strong
overload capacity.
Core points
-
Manufacturing processMature and low noise
-
TechnologyMature, large torque and strong overload capacity
Operating conditions
-
-20℃~+60℃Ambient air temperature
-
Monthly average ≤90%Humidity
-
≤1KMAltitude
Specifications
| Voltage | 100~127V, 200~240V |
| Power | 30~200W, 80~300W |
| Frequency | 50Hz,60 Hz,50/60 Hz |
| Rotating speed | 800~1650, 1200~1650 |
| Protection grade | IP00 |
| Insulation grade | E/B/F(CCC) |
