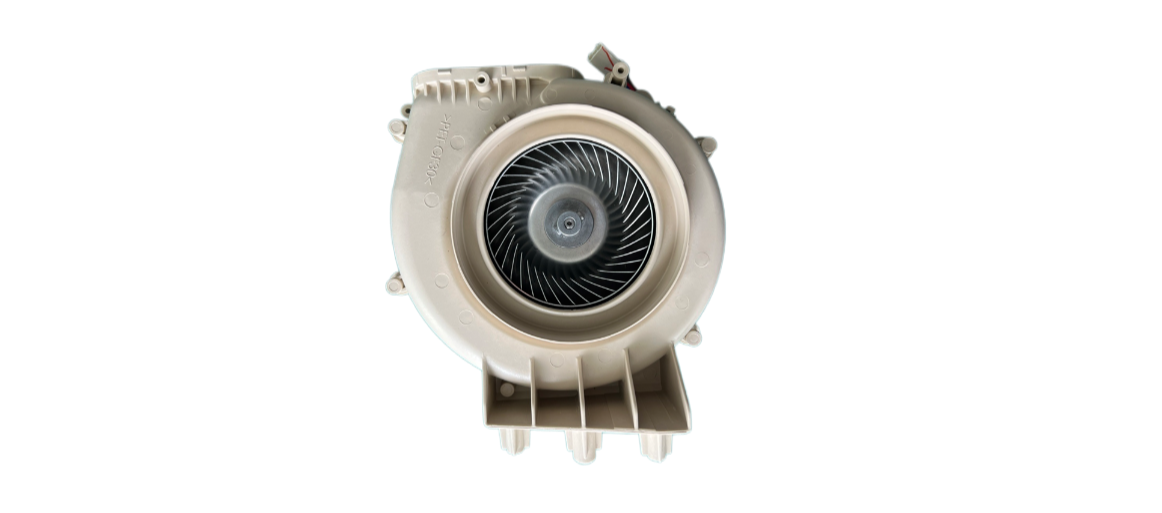

Frequency conversion drying fan module
The variable frequency
drying fan module adopts BLDC motor, equipped with forward or backward
centrifugal impeller and volute, which is suitable for washing and
drying machine and provides wind power for the heat system circulation
of drying function.
Core points
-
High-efficiencyDC frequency conversion motor is used, which is more efficient and silent than AC motor; Can provide a higher pressure head
-
Working environmentStable and reliable in high temperature and high humidity environment
-
Good sealingEffective sealing structure, reducing the leakage of drying system
Operating conditions
-
-20℃~+80℃Ambient air temperature
-
Monthly average ≤90%Humidity
-
≤1KMAltitude
Specifications
| Impeller diameter range | φ112~240mm |
| Rated speed | 3500~5000rpm |
| Rated output | 18~80W |
| Maximum air volume range | 80~510m³/h |
| Maximum static pressure | 270~120Pa |
| Applicable model | 2~5kg、10~13kg、18kg |
