Special Power Supplies - Shore-based Variable Frequency Power Supply System Solution

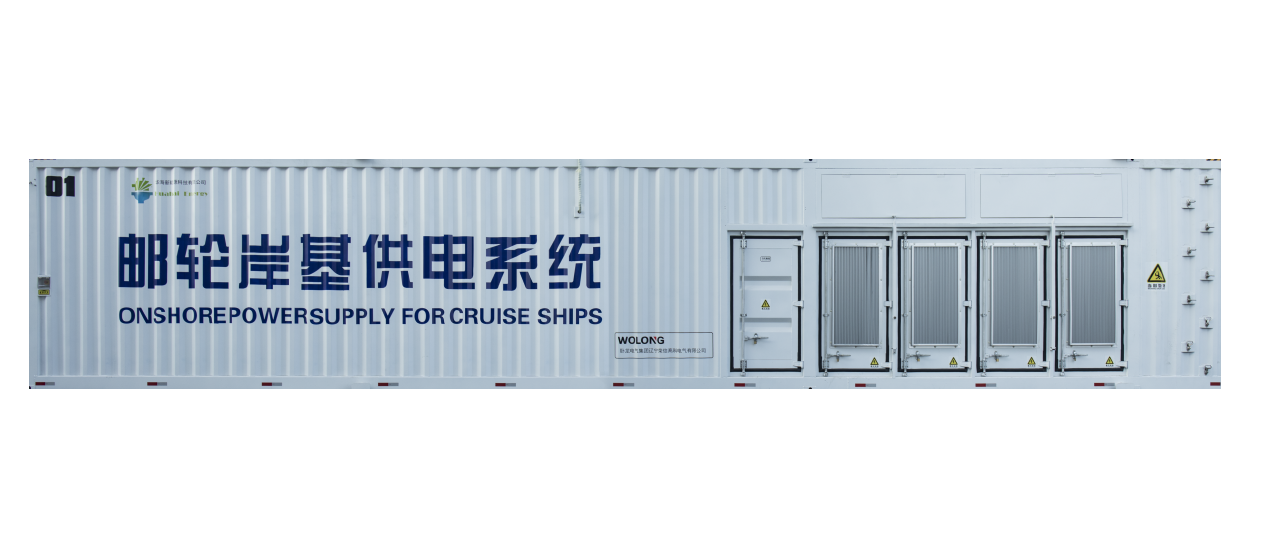

Shore - based Variable
Frequency Power Supply System Product is a kind of special variable
frequency power supply installed at the front of port terminal to
provide auxiliary or working power suitable for the internal electric
system of near-shore ships.
Product Features
-
Low-voltage inverter powerTwo-level or three-level topology, rated output voltage of 400V, 690V, 1140V
-
High-voltage inverter powerAdopts a multi-level cell cascade topology, with rated output voltages of 6kV and 10kV.
-
DC Shore Power SupplySuitable for DC Charging of High Power Electric Drive Vessels
-
Seamless switching functionRealize continous power supply in the process of connecting to the ship's power supply, exit and power conversion, with inverse power processing function
-
Customized productsAir-cooled,water-cooled ; container type, indoor cabinet type and vehicle-mounted movable type
Operating Conditions
-
-10℃～+40℃Ambient air temperature
-
≤98% (with very strong salt spray and oceanic climate)Ambient air monthly average maximum relative humidity
-
≤1000MAltitude
