Electric boat drive system

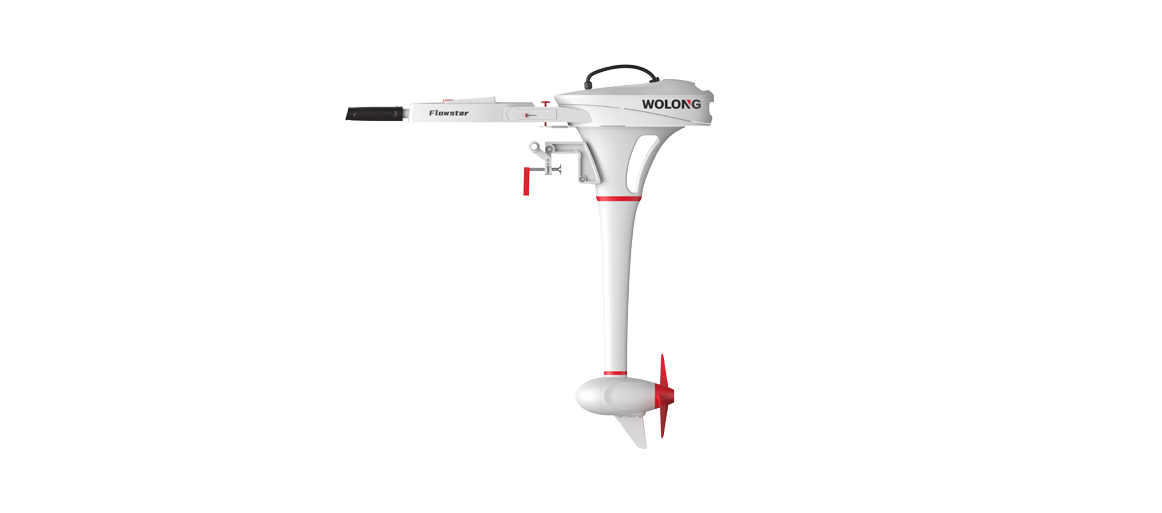

Flowstar outboard motor

Beautiful appearance, compact and portable, maintenance-free design ,suitable for light boats under 1.5 tons

Product Features

Power	1.0kW & 1.5kW
Rated Voltage	48V
Input Voltage	36-57.6V
Communication	FOC
Propeller RPM	1200rpm/1800rpm
Control handle	Remote / Tiller
Motor Control	FOC
Battery	Li-ion polymer
Shaft length	381.00mm / 15“ (S) 538.48mm / 21.2” (L) 635.00mm / 25“ (XL)
Trim/Tilt Angle	7°，14°，21°，28°/70°
Propeller size	11'' 5.8'' 2-blades/7.87'' 5.35'' 3-blades
Motor Weight	12kg
Charging time	3 hours (fast charge), 8 hours (standard charge)
Battery weight	5.5kg
