Three-phase induction motors

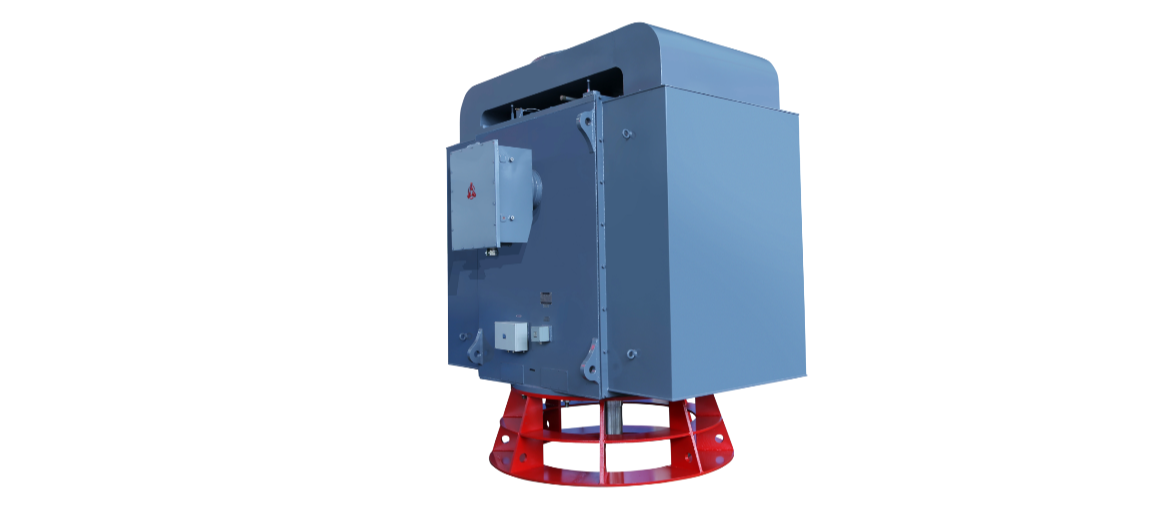

Vertical motors

Lower shaft height, higher power output, higher efficiency, lower noise, safe and reliable operation and convenient use and maintenance. This series of motors is suitable for Oil, Gas and Chemical Industry, Coal, Metallurgy, Power Plant and Machinery industry.

Product Features

High reliability

Reliable insulation and long lifespan;
Robust bearing structure;
Withstanding high axial thrust
Excellent performance

High efficiency: IE4 and above;
Low vibration: ≤1.2mm/s;
Low noise: ≤Lp85dB(A).
Customized design

Modular design, flexible, meet various requirements from customers.
Easy maintenance

Extended lubrication intervals (1.5x);
Full life cycle services

Working conditions

-20℃ ~+40℃ (Standard)
-60℃ ~+60℃ (Customized)
Ambient air temperature
≤90% (at 25℃)
Humidity
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude

Specifications

Cooling method	IC611, IC616, IC666, IC81W, IC86W
Power range	500-10000kW(670~13400Hp)
Speed range	280-3600rpm
Frequency	Fixed(50Hz/60Hz)/Variable
Voltage range	3000-13800V
Protection grade	Up to IP66
Explosion proof type	Ex ec, Ex pxb, Ex pzc
Rotor material	Cast aluminum/copper bars
Mounting type	IMB3
Bearing	Slide/Rolling bearing
Standards	GB, IEC, NEMA, BS, API, EN
Certifications	IEC Ex, ATEX, CCC, MA, CSA, UL
Applications	Oil, Gas and Chemical Industry, Coal, Metallurgy, Power Plant and Machinery industry
