Three-phase induction motors

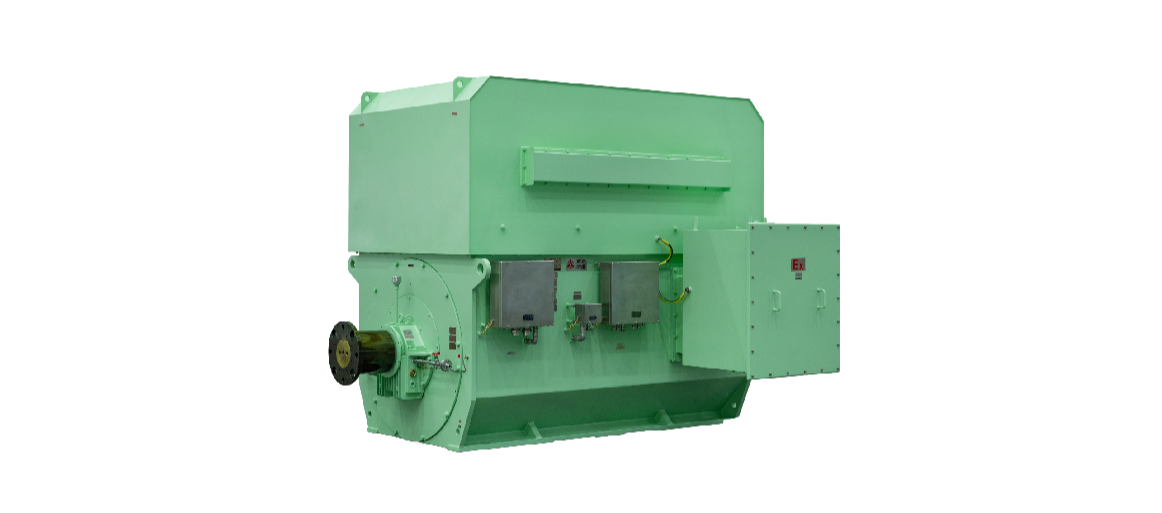

TEWAC series
The TEAWC series motors
are high-efficiency, energy-saving, and environmentally friendly,
featuring a lower shaft height, higher power output, improved
efficiency, reduced noise levels, safe and reliable operation, and ease
of maintenance. They are suitable for driving various ventilation fans,
compressors, water pumps, crushers, cutting machinery, transportation
equipment and general machinery in diverse industrial applications such
as Mining, Steel, Machinery, Petroleum, Chemical and Power Stations.
Product Features
-
High reliabilityReliable insulation and long lifespan;
Robust bearing structure; -
Excellent performanceHigh power density;
High efficiency: IE4 and above;
Low vibration: ≤1.2mm/s; Low noise. -
Customized designModular design;
Flexible structure to meet various requirements from customers. -
Easy maintenanceLarge injection space;
Extended lubrication intervals (1.5x);
Full life cycle services
Working conditions
-
-20℃ ~+40℃ (Standard)
-40℃ ~+60℃ (Customized)
Ambient air temperature -
≤90% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude
Specifications
| Cooling method | IC81W, IC86W |
| Power range | 280-40000kW(380~54000Hp) |
| Frame size | H355-1400 |
| Speed range | 300-3600rpm |
| Frequency | Fixed (50Hz/60Hz)/Variable |
| Voltage range | 3000-13800V |
| Protection grade | Up to IP66 |
| Explosion proof type | Ex ec, Ex pxb, Ex pzc, Ex tb |
| Rotor material | Cast aluminum/copper bars |
| Mounting type | IMB3, IMB35, IMV1 |
| Standards | GB, IEC, NEMA, BS, API, EN |
| Certifications | IEC Ex, ATEX, CCC, CSA, UL |
