Hydrogen production power supply

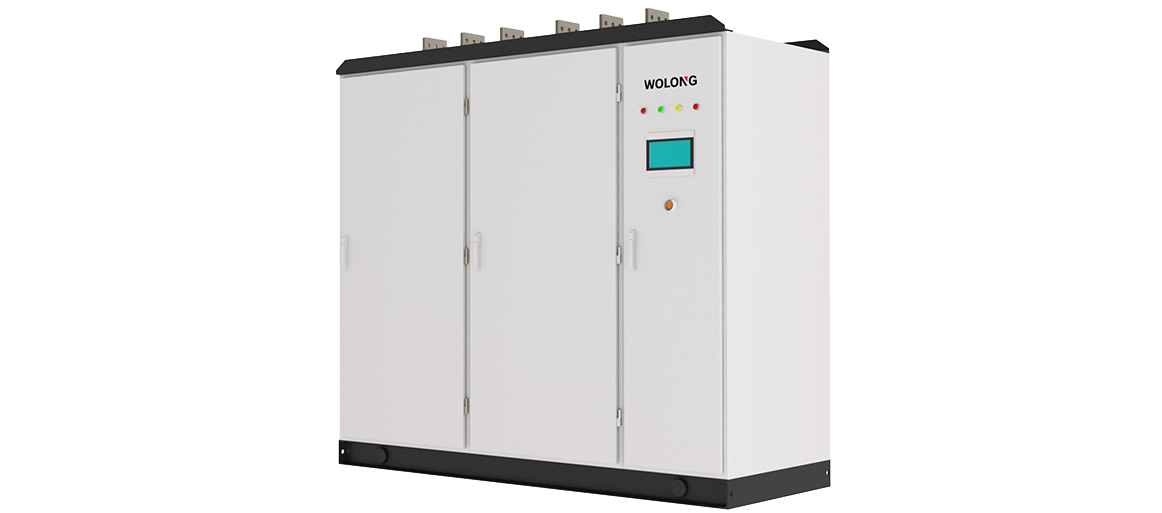

Thyristor-type hydrogen production power supply

Thyristor special power supply for hydrogen production, water cooling design. It is mainly used in hydrogen production scenarios with good AC power grid conditions.

Product Features

Rich products

The power coverage is 1250-20000kW.
Mature technology

Small floor space, low equipment investment and high efficiency.
Convenient configuration

Multi-pulse rectification can be realized by 12 -96 pulse, which can reduce harmonics.
Safe and reliable

Water cooling design, high protection level and complete protection measures.

Operating Conditions

-40℃～+50℃

Ambient air temperature
≤95% (at 25℃)

Monthly average maximum relative humidity of ambient air
≤2000m

Altitude

Specifications

Input voltage	35kV/10kV (transformer required)
Total current distortion rate	< 5% (at maximum power)
Power factor	≥0.9
Maximum output current	20kA
Output voltage range	0~1000V
Output current accuracy	≤0.50% (maximum output current)
Output current ripple	≤2%
Output control mode	Voltage control/current control/power control
Communication interface	CAN,RS85,Ethernet
Cooling method	Water-cooling
Protection grades	IP54

Related products

IGBT hydrogen production power supply

Using PWM rectifier and multiple DC-DC technologies, water cooling design. It is mainly suitable for hydrogen production in AC power grid or microgrid with photovoltaic and wind power as the main energy sources.

AEM Electrolyser EL4.1

Enapter's patented anion exchange membrane (AEM) electrolyzer is a standardized, stackable and flexible on-site hydrogen production system.

Cabinet cluster water electrolysis hydrogen production device

Two to 10 2.5Nm³/h cabinets are integrated in a container
