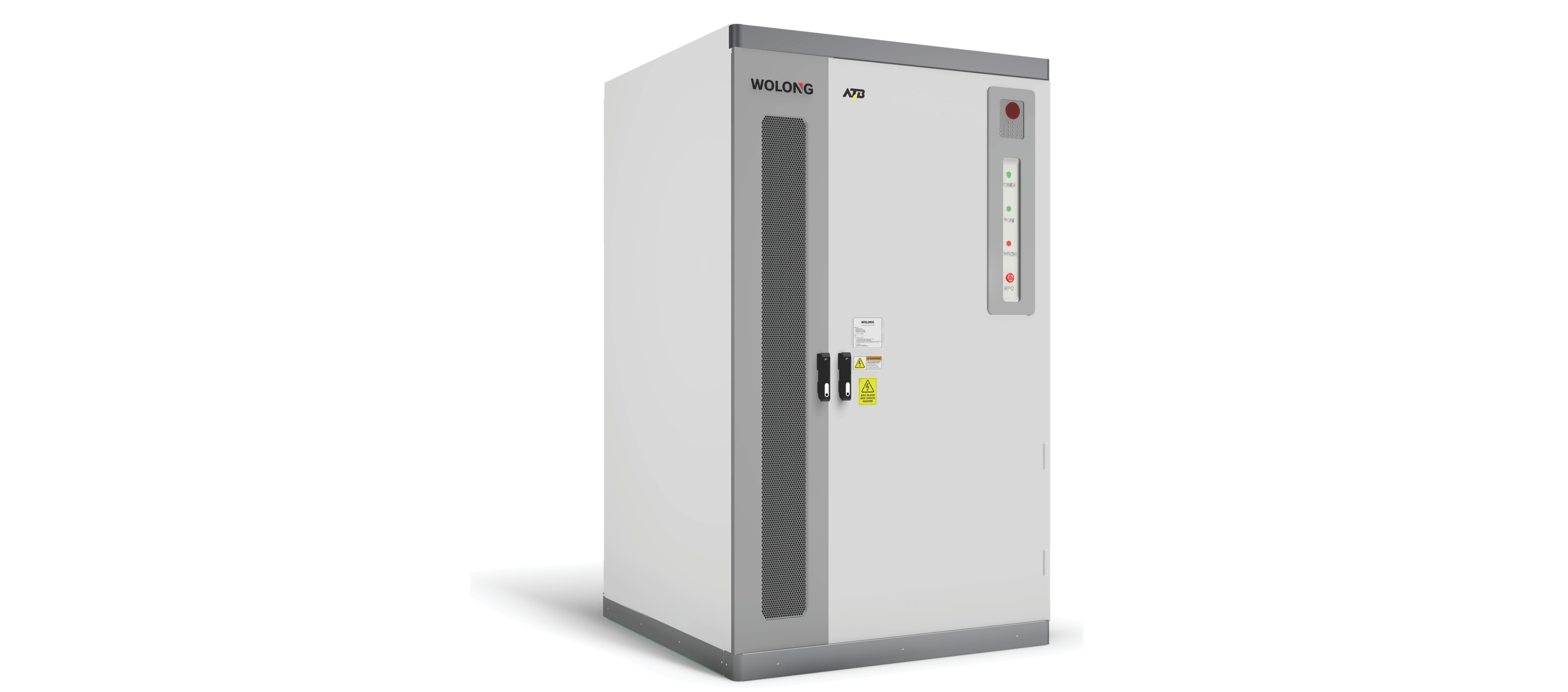

Commercial and Industrial ESS

WL-ESS-100kW/241kWh-400V

Our C&I ESS features an integrated design that combines the PCS and battery into a single cabinet. This product is highly flexible and expandable to meet the diverse application needs of various clients.

Main Advantages

Safe and Reliable

No battery parallel connection for system safety
Flexible and Scalable

Intelligent liquid cooling with higher energy density
Cost Savings

All-in-one design, highly integrated for easy transportation
Intelligent Management

Intelligent platform supporting efficient operation monitoring

Operating Conditions

-20℃~50℃(>45℃ derating)

Operating Temperature

Specifications

Battery Parameters
Battery Cell Type	LFP/314Ah
Battery Configuration	1P240S
Battery Capacity at DC Side (BOL)	241 kWh
Maximum P-Rate / Nominal Discharge Duration	0.5P / 2 Hours
Battery Rated Voltage	768 V
Battery Voltage Range	672 ~ 864 V
Battery Cooling Method	Liquid Cooling
AC Parameters
Rated Power	100 kW
Rated Voltage	400 V ± 10%
Rated Frequency	50 / 60 Hz
Power Factor	-1 ~ 1
Max. THD of Current	<3% (at nominal power)
PCS Compliance Standard	IEC 62477-1, IEC61000-6-2&4, C10/11, PPDS Annex 4. TR 3.3.1, VDE-AR-N 4105, RENBLAD 342, PTPiREE, EIFS,PEA
General Parameters
Topology	Transformerless
Size (W × H × D)	1,350 × 2,300 × 1,350 mm (4.43 × 7.55 × 4.43 ft)
Weight	2,650 kg
IP Level	IP 55 (Excluded PCS and Chiller)
Auxiliary Power Supply	Default: Internal Power Supply Optional: External with 220 Vac
Anti-Corrosion	Default: C4 Optional: C5
Fire Protection System	Default: Aerosol, Smoke and Temperature Detector, Deflagration Panel Optional: Ventilation System with Flammable Gas Detector
Operating Temperature	-20 ~ 50 °C (>45 °C de-rating) / -4 ~ 122 °F (>113 °F de-rating)
Max. Operating Altitude	3,000 m
Communication Protocol	Modbus TCP
Communication Interface	Ethernet
Compliance Standard	IEC 62477-1 / IEC 61000-6-2&4 IEC 62619 / UN38.3
